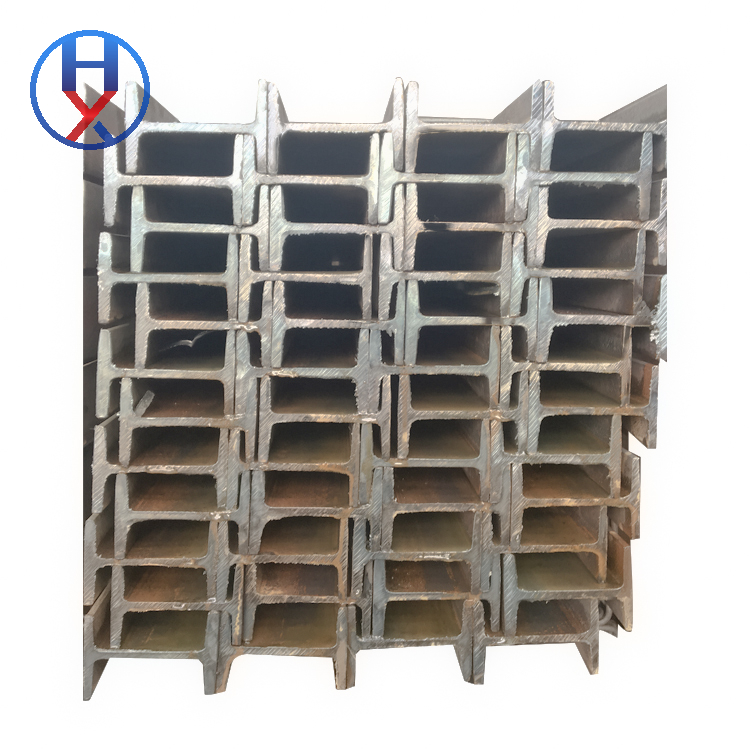

I-beams, also known as steel beams, are long strips of steel with an I-shaped cross-section. I-beams are divided into ordinary I-beams and light I-beams. They are sections of steel with an I-beam shape.
I-beams are mainly divided into common I-beams, light I-beams and wide flange I-beams. These are divided into wide, medium and narrow flange I-beams according to the flange to web height ratio. The first two are produced in sizes 10-60, i.e. with a corresponding height of 10 cm-60 cm. At the same height, light I-beams have narrow flanges, thin webs and light weights. The wide flange I-beam, also known as H-beam, has a section characterised by two parallel legs and no slope on the inside of the legs. It is an economic section steel and is rolled on a four-roller universal mill, so it is also known as a "universal I-beam". National standards have been formed for ordinary and light I-beams.
Brand Name | Shandong Heyixin |
Product Name | I-Beam |
Place of Origin | ShangDong China |
Technical: | Hot Rolled Molding |
Grade | Q195-Q235, Q345, SS355JR, SS400, A36, ST37-2 A36、St37、S235J0、S235J2,St52 |
Standard | JIS ATSM DIN GB EN |
Processing Service: | Bending, Welding, Decoiling, Punching, Cutting |
Thickness | 4.5mm-15.8mm or as your requirements |
Length | 6-12m/pc or as your request |
Flange Width | 100mm-400mm or as your request |
Flange Thickness | 6mm-28mm or as your request |
Web Width | 100mm-900mm or as your request |
Web Thickness | 6mm-28mm or as your request |
Tolerance | ±1% |
Alloy Or Not | Non-Alloy |
Delivery Time | within 20 days |
Application | Industrial structure |
