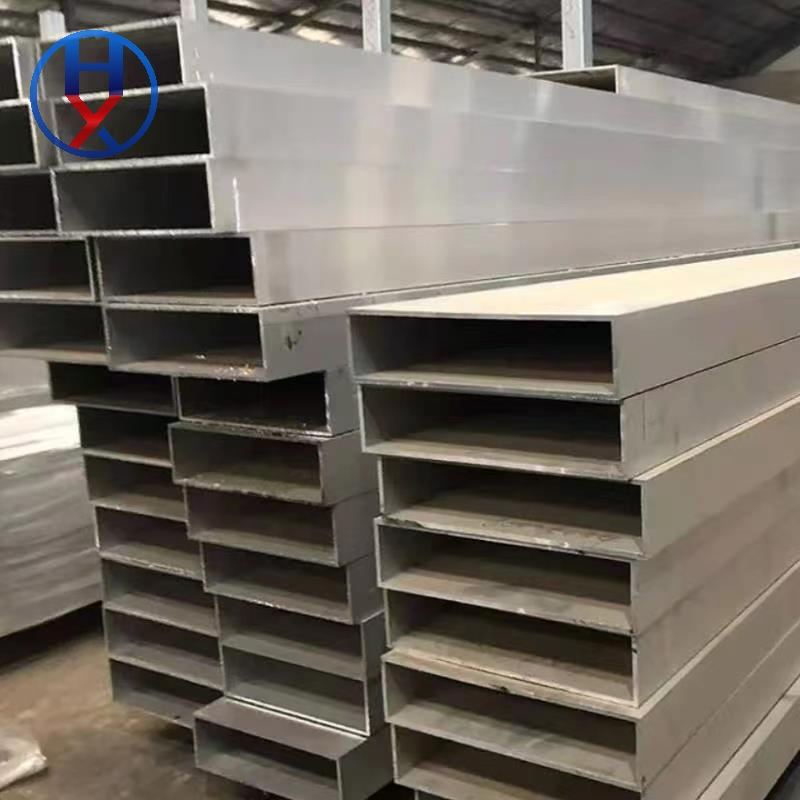

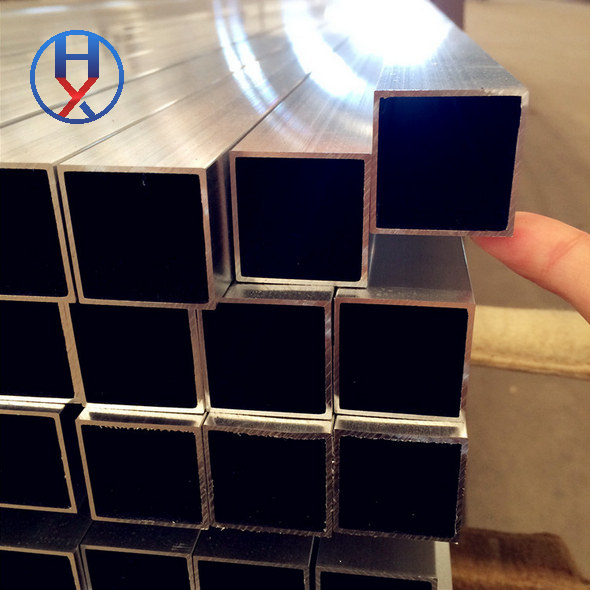

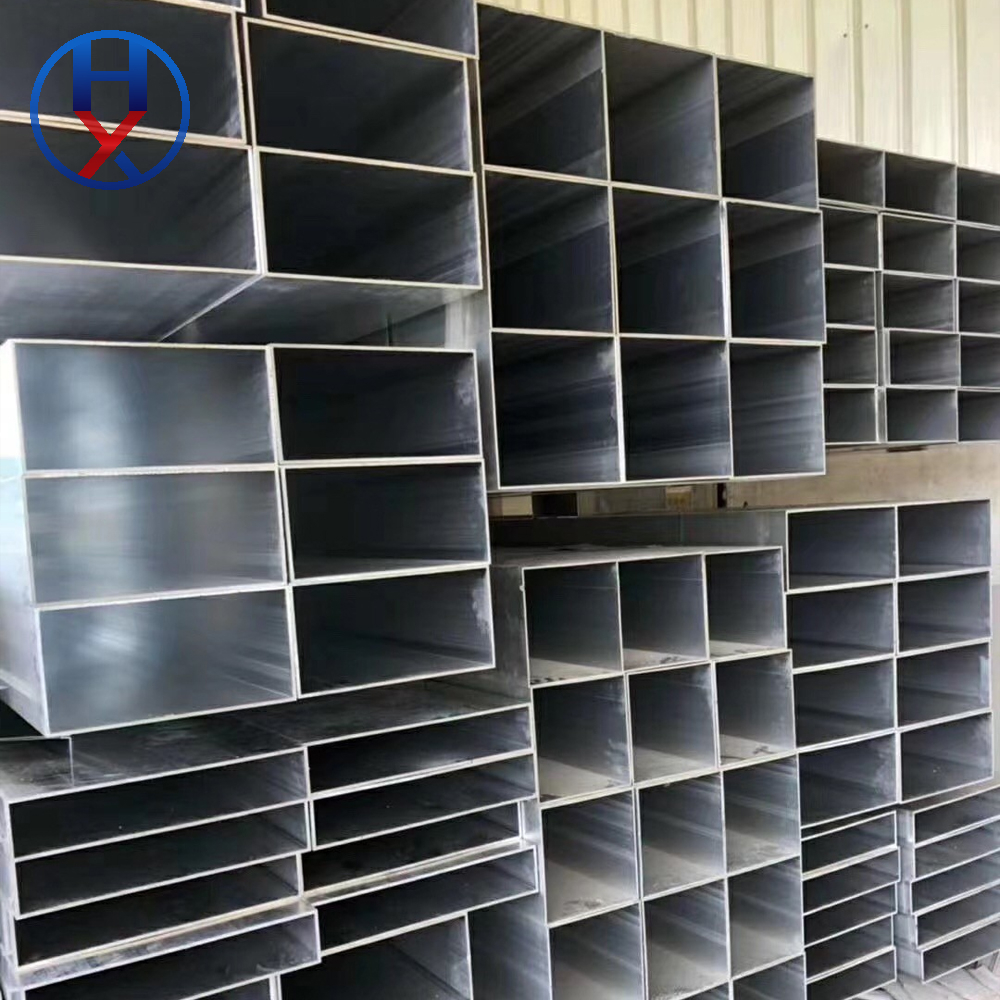

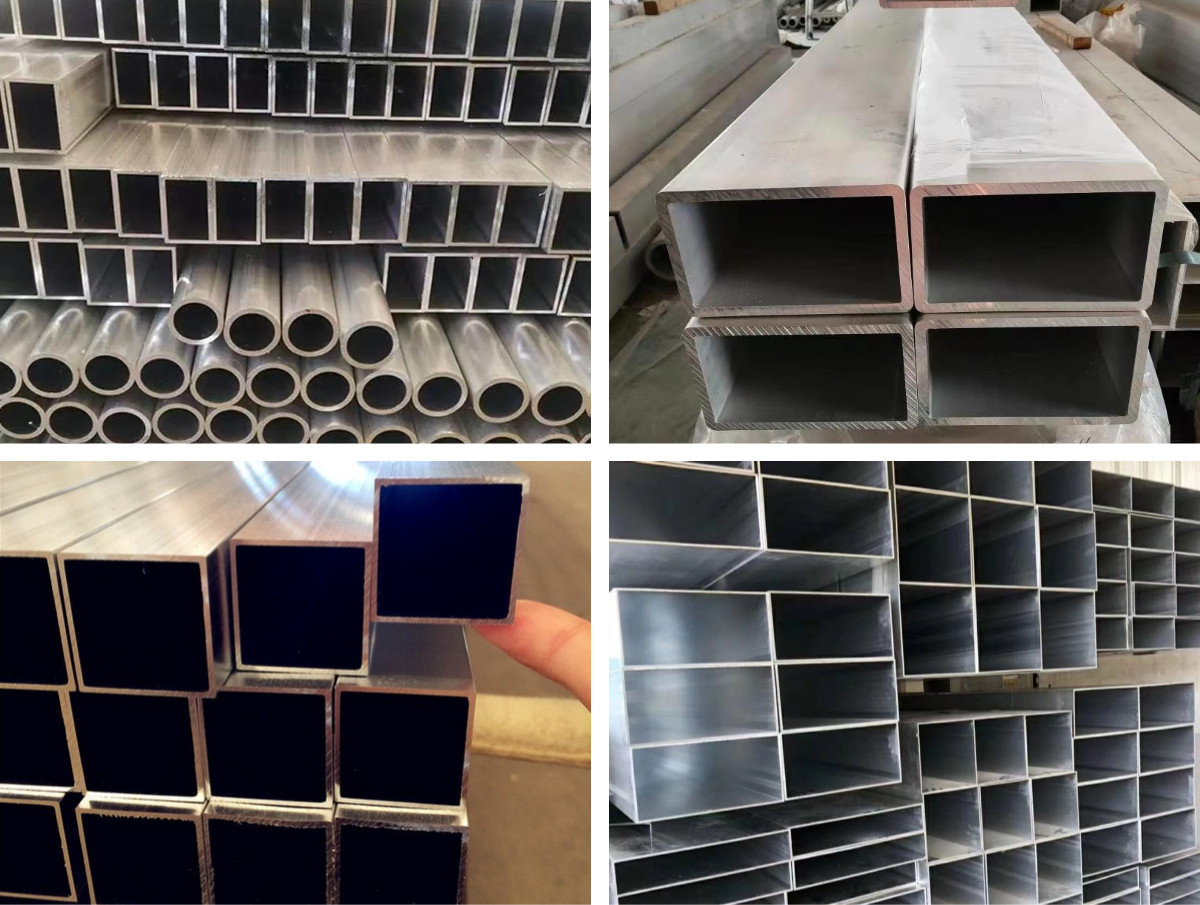

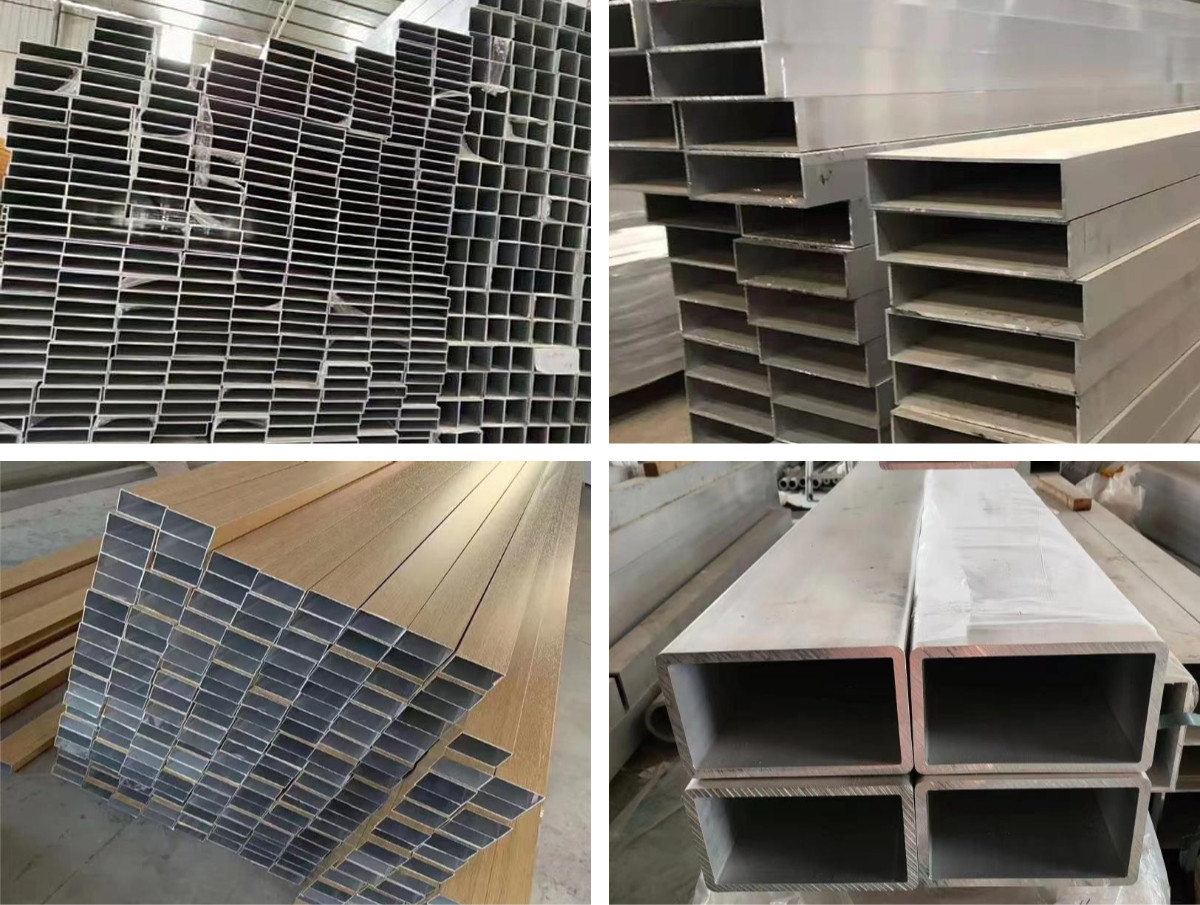

Aluminum Rectangle Tube, is an extruded aluminum tube that is widely used for all types of fabrication projects where lightweight and corrosion resistance is a primary concern - frame work, support columns, gates, fencing, handrails, etc. Rectangle Aluminum Tube has square corners inside and outside, with no weld seam.
Product name | Aluminum Rectangle Tube/Pipe |
Place of Origin | China |
Grade | 6000 Series |
Standard | GB/T26014-2010 |
Temper | T3-T8 |
Surface Treatment | Powder Coated |
Hardness | 8-10WB |
Al (Min) | bfe ≥98 |
Wall Thickness | 10mm~300mm,Or customized |
Length | 3~6m or Custom Length |
Tolerance | ±0.1% |
Application | Industrial construction/home decoration, etc. |
Extruded Aluminum T- Track Profile |
Shape | Rectangle |
Alloy Or Not | Is Alloy |
Tolerance | ±0.3% |
Processing Service | Decoiling, Welding, Punching, Cutting |
Delivery Time | 15-20 days.or according to the quantity of goods |
Surface | Polishing |
Color | RAL color |
Payment term | T/T 30% in advance, and the balance before shipment |
Aluminum Alloy Chemical Composition |
Alloy | 6063% | 6063A % | 6061% | 6082% |
Si | 0.2~0.6 | 0.3~0.6 | 0.3~0.6 | 0.7~1.3 |
Fe | 0.35 | 0.15~0.35 | 0.7 | 0.5 |
Cu | 0.1 | 0.1 | 0.15~0.4 | 0.1 |
Mn | 0.1 | 0.15 | 0.15 | 0.1 |
Mg | 0.45~0.9 | 0.6~0.9 | 0.8~1.2 | 0.8~1.2 |
Gr | 0.1 | 0.05 | 0.04~0.35 | 0.25 |
Zn | 0.1 | 0.15 | 0.25 | 0.2 |
Ti | 0.1 | 0.1 | 0.15 | 0.1 |
Other (each) | 0.05 | 0.05 | 0.05 | 0.5 |
Other (total) | 0.15 | 0.15 | 0.15 | 0.15 |
Al | Remain | Remain | Remain | Remain |
